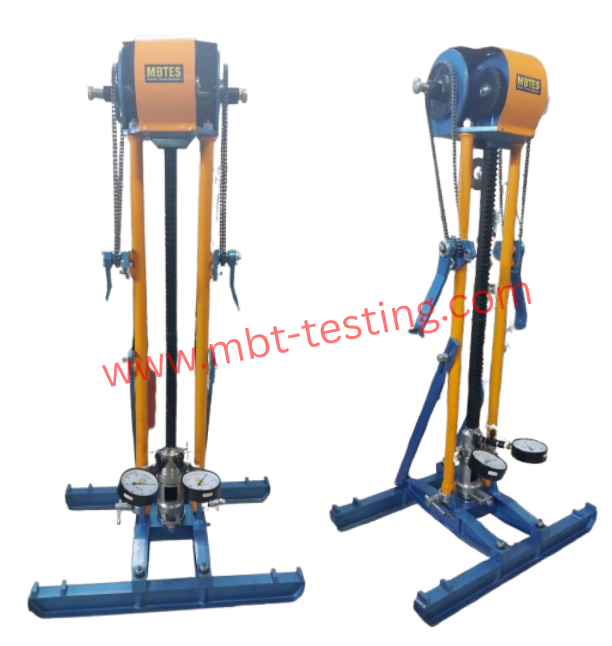

Dutch Cone Penetrometer 5 Ton

For determining cone resistance and friction resistance of soil layers.

Baca selengkapnya
Baca selengkapnya
Baca selengkapnya
Lihat produk
Lihat produk
Baca selengkapnya
Baca selengkapnya
Baca selengkapnya
Lihat produk
Baca selengkapnya
SKU: SO-200A Kategori: Tag:

Deskripsi

For determining cone resistance and friction resistance of soil layers.

Specifications :

  • Press in Apparatus Steel Construction, manually operated 5 tons capacity  1set
  • Sounding Rod Machine Steel 1 – 1/4″ dia 1 meter effective length  20 pcs
  • Plunger Rod Round Bar 15 mm dia, 1 meter length  20 pcs
  • Adaptor Consist of :
    • Push Adaptor Machined Steel  1 pc
    • Pull Adaptor Machined Steel  1 pc
  • Spiral Anchor Consist of :
    • Spiral Anchor Machined Steel 1.5 meter length 4 pcs
    • Handle & T-Piece Machined Steel  4 sets
  • Mantle Cone Precision Machined Steel hardened tip  1 pc
  • Friction Cone Precision Machined Steel hardened tip 1 pc
  • Wrenches Set Steel Box Case  1 set
  • Fasten Press Consist of :
    • Long Fasten Press 5 meter length, 8 cm width   2 pcs
    • Short Fasten Press 1 meter length, 12 cm width 2 pcs
  • Manometer 60 kg/cm² capacity  1 pc
  • Manometer 300 kg/cm² capacity 1 pc

Dimensions (l x w x h) :220 x 120 x 80 cm
Gross Weight : 452 kg

Informasi Tambahan

Berat 452 kg
Dimensi 220 × 120 × 80 cm
Quantity

1 Unit

ASTM Standard Number

ASTM D-3441
