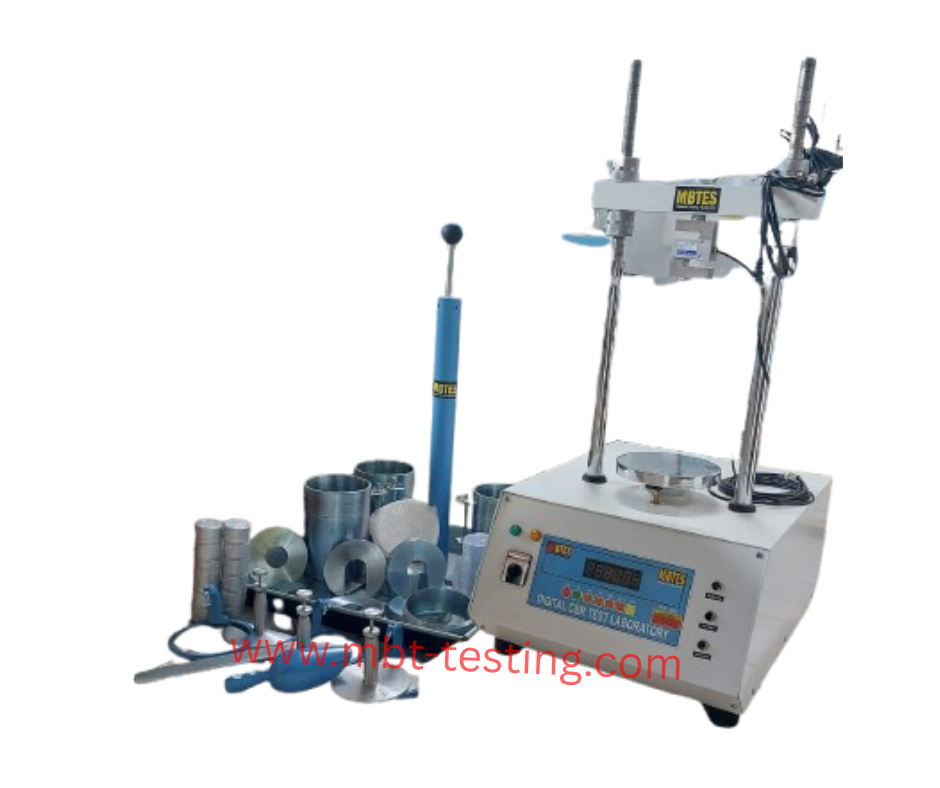

Digital Laboratory CBR Test

SKU: SO-545 Kategori: Tag: ,

Deskripsi

ASTM D.1883 & AASHTO T.193

Specifications :

  • Electricial loading machine Electric, 220 V-AC, 1/2 HP 1 phase, speed 0.05/min riversing switch
  • CBR Mold Machined steel 6 ” i.d 7 ” height 2 ” height of collar 3 pcs
  • pacer Dish Machined steel 5 -15/ 16 ” dia, 2.416 ” height 1 pc
  • Cutting Edge Machine steel, Sharp edge 1 pc
  • Circular Surcharge Weight Machine steel, S – 7/ 8 ” dia, 51 lbs weight 3 pcs
  • Slotted Surcharge Weight Machine steel, 5 – 7/ 8 ” dia, 51 lbs weight 3 pcs
  • Modified proctor hammer Machine steel, 18 ” drop height 10 lbs weight 1 pc
  • Swell Plate 3 pcs
  • Swell Tripot 3 pcs
  • kertas saring 1 box
  • Proving Ring 6000 lbs capacity 1 pc
  • Square Pan Galvanized steel 65 x 65 x 7.5 cm 1 pc
  • Tin Box Alumunium, 60 gr capacity 12 pcs
  • Graduated Cylinder 1000 ml capacity 1 pc
  • Scoop Cast Aluminium 1 pc
  • Trowel Pointed type 1 pc
  • Straight Edge 300 mm length 1 pc

50 kN capacity CBR Testing Machine is developed to perform both tests in one frame. It reduces the costs for customers. Upper beam can be adjusted in height. Easy to change apparatus according to CBR or Marshall Tests.

The machine is controlled by Sematron LCD display unit, it has a servo electrical engine for accurate testing. Speed range is fixed at 1, 27 mm/ min. for CBR tests and 50, 8 mm/ min according to BS and ASTM standards. Test results can be seen from Sematron display unit and save easily.
