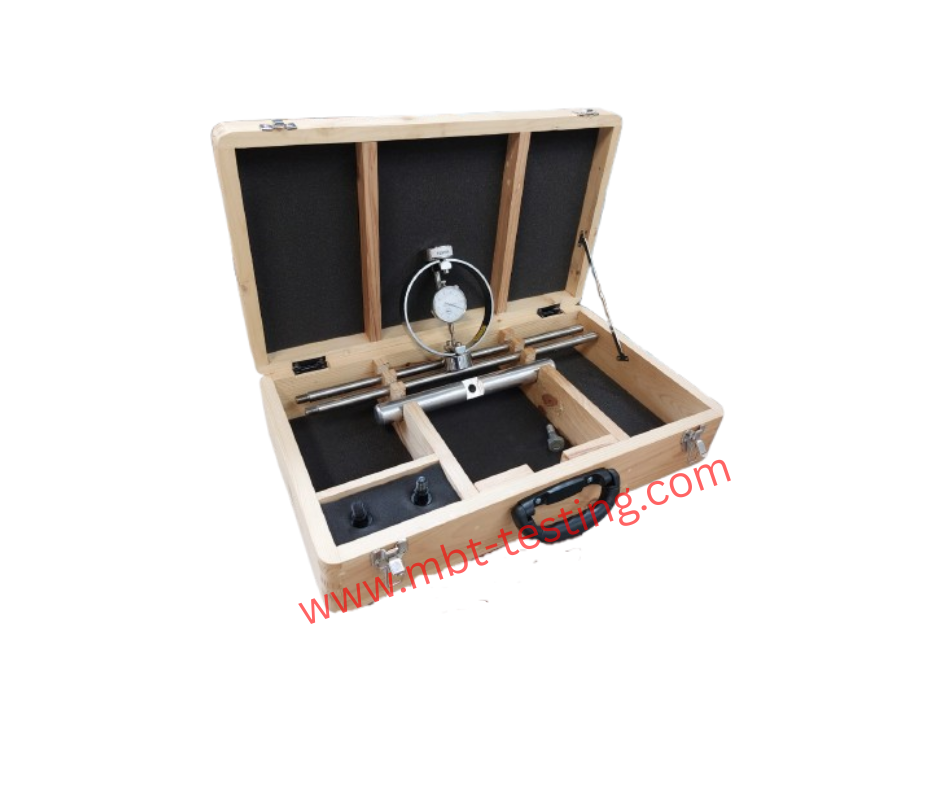

Proving Ring Penetrometer

Used to determine the bearing capacity of sub grade or to measure soil compaction, light and easy to handle in the field, a rapid means of determining the penetration resistance of soil in shallow exploration survey.



SKU: SO-270 Category:

Description

Specifications :

  • Penetration Rod Plated steel 50 cm length with 5 cm increment line  2 pcs
  • Penetration Cone Machined steel, hardened plated, 5 sq cm cross section area, 30″ angle 2 pcs
  • Holder Wooden handle with T-Piece connector  1 pc
  • Carrying Case Wooden case  1 pc
  • Proving Ring 100 kg capacity 1 Set
  • Open & Wrench Hardened steel  2 pcs

Dimensions (l x w x h) : 65 x 35 x 20 cm
Gross Weight : 9 kg

Additional information

Weight 65 kg
Dimensions 35 × 20 cm
