Description
Specification :
- Steel frame. 6- force gauge dia ( Calibrated) digital operated hydraulic pump

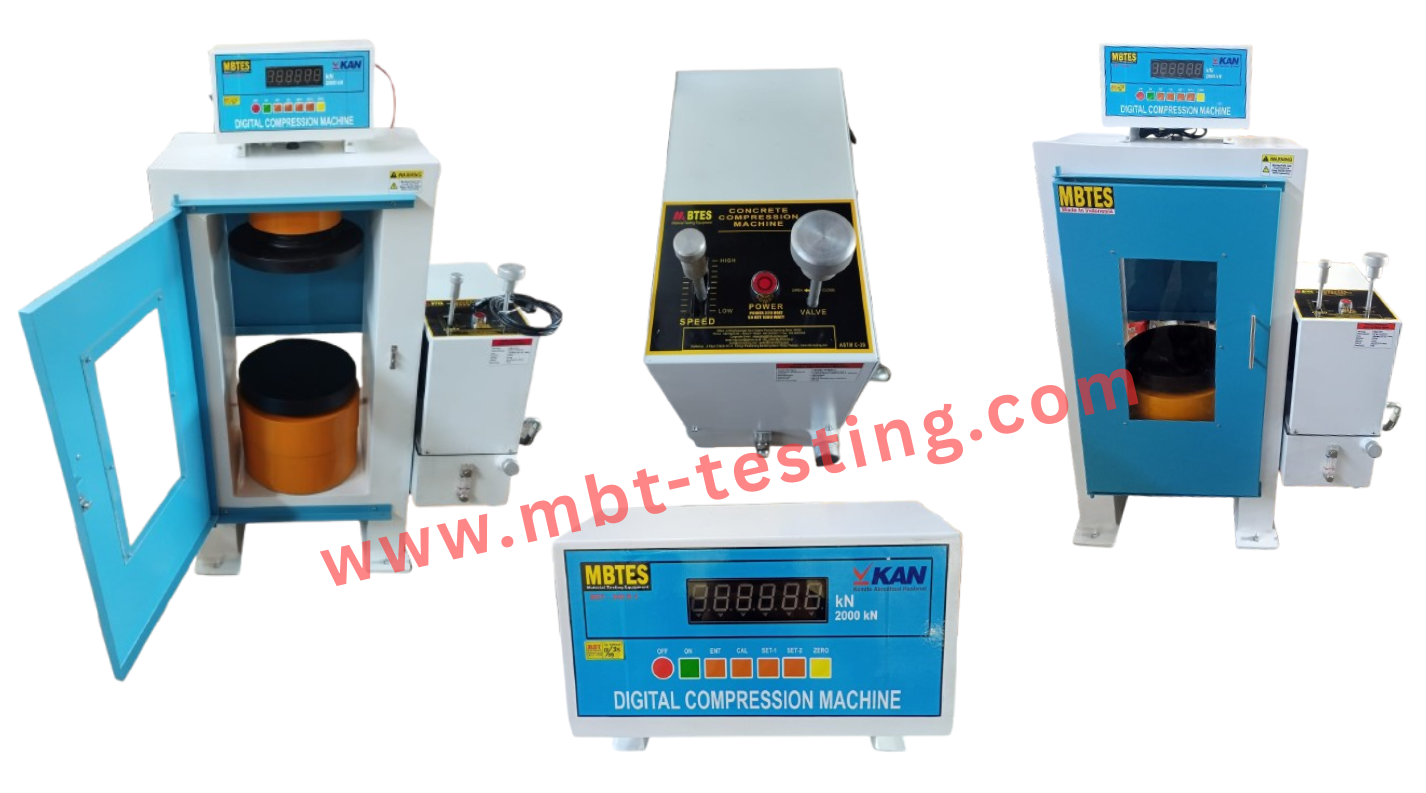

- DigitaI ConcreteCompressionMachine 500 Kn cap, 0.5 kNreadability
- Digital Concrete Compression Machine 1000 Kn cap, 10 kN readability
- Digital Concrete Compression Machine 1500 Kn cap, 10 kN readability
- Digital Concrete Compression Machine 2000 Kn cap, 10 kN readability
- Digital Concrete Compression Machine 3000 kN cap, 10 kN readability
General Standard:
Frame Heavy duty welded steel construct on 10 em thick bottom and upper plate;
Hydraulic system for 1000. 1500. 2000 kN Capacity;
Heavy duty welded steelcyflnder. hard dlromed piston 230 mm claIlleter. F«3000 kN type using 250 mmdia. piston.
Additional information
| Weight | 500 kg |
|---|---|
| Dimensions | 80 × 45 × 120 cm |
| ASTM Standard Number | ASTM C39 |
| Quantity | 1 Unit |
